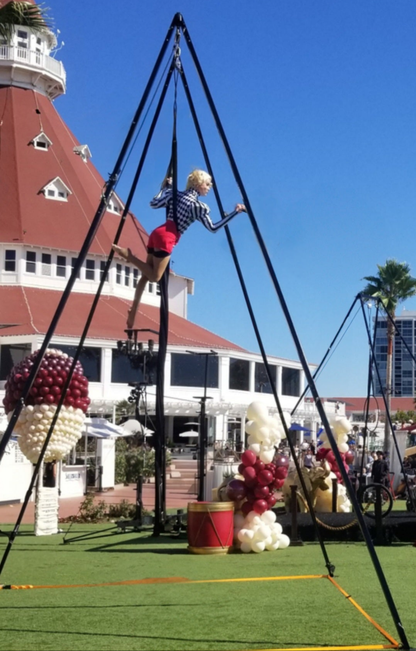

20' - Standard Aerial Rig

The Standard Aerial Rig has a rigging point height of 19 feet 6 inches and comes with 3 leg sections per corner. It can be assembled with fewer leg sections for lower heights. The feet are integrated into the legs.

- 2 Tie Off Cleats come standard with optional upgrade to Eye Bolt Anchors

- Standard Crane Bar (top) is 4 feet wide with 3 rigging points. Wider Crane Bar and additional rigging points available

- Standard Rigs now have an updated 4" round foot

MAX RIGGING POINT HEIGHT: 19.5 ft

STATIC LOAD LIMIT: 750 lbs

DYNAMIC LOAD LIMIT: 400 lbs

LONGEST INDIVIDUAL PIECE: 87 in

FOOTPRINT: ~14 x 19 ft

TOTAL WEIGHT: ~240 lbs

*lead time 2 weeks, custom color 3 weeks

*all Aerial Rigs are shipped via freight. after your order is placed, you will be contacted by email for details. Shipping can be as much as $500 depending on location. if the delivery address is residential, there may be additional fees. we work with several freight companies to get the lowest rate possible. at this time we are only able to ship within the Continental 48
